Outdoor LED Screen
Built to withstand various weather conditions, outdoor LED screens provide outstanding visibility and durability. They are designed for high-impact, large-scale advertising and information broadcasting in spaces like sports arenas and public squares.
1. Weatherproof
Resistant to rain, wind, and sunlight.
2. High Brightness
Easily visible even in direct sunlight.
3. Long Lifespan
Durable construction ensures prolonged outdoor use.
Applications

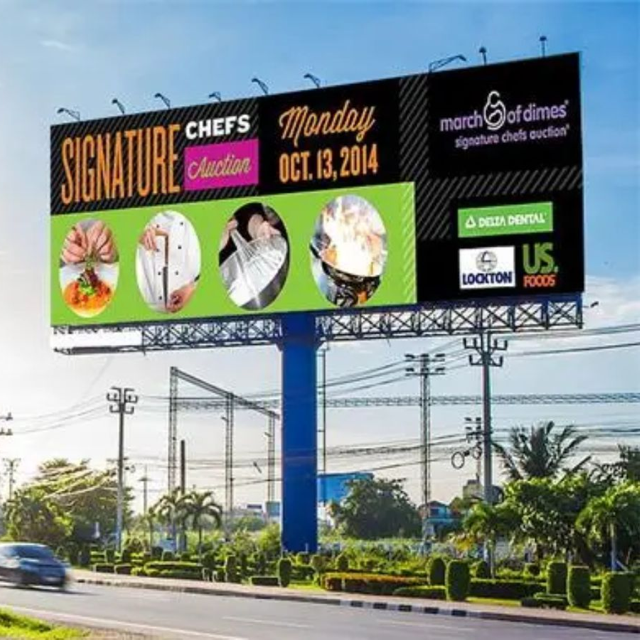

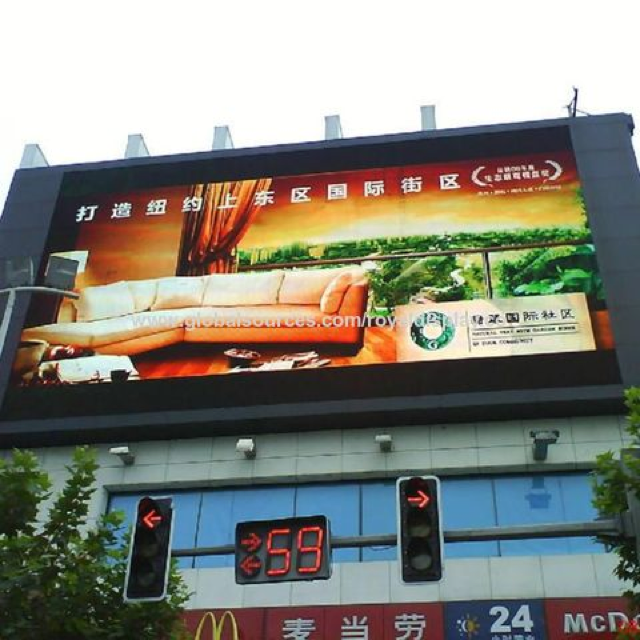

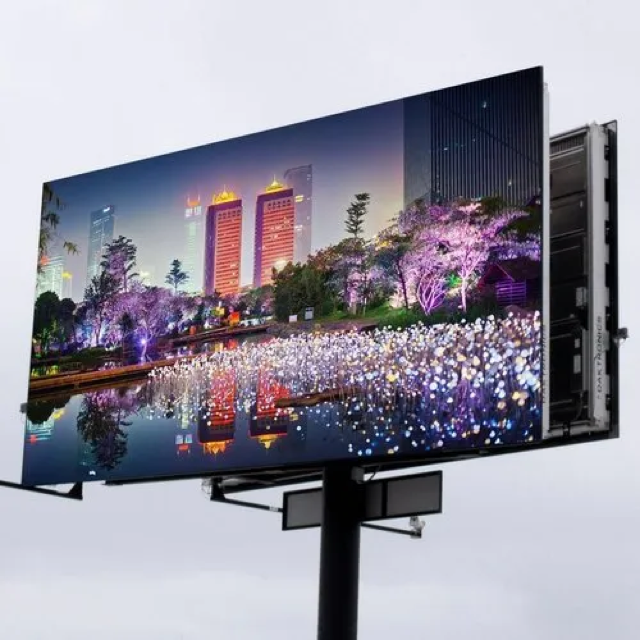

Advertising Billboards
Outdoor LED screens serve as dynamic advertising platforms on highways, main streets, and urban centers. They replace traditional billboards with vibrant, moving images that capture the attention of passersby.
Digital Signage
Used for displaying real-time information, promotions, and advertisements in public spaces such as shopping malls, parks, and transportation hubs.

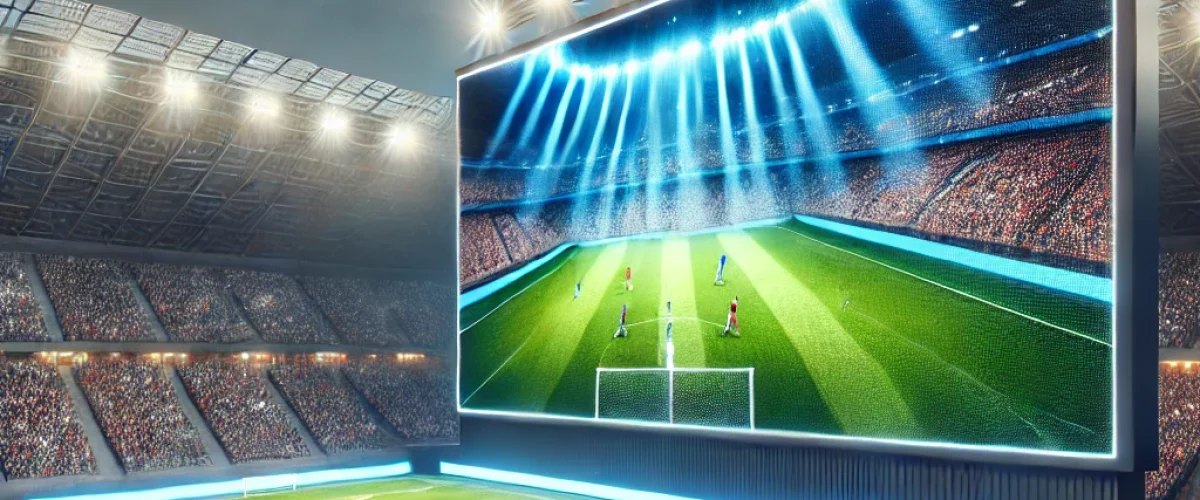

Sports Stadiums and Arenas
Large outdoor LED screens display live action, replays, and scores, enhancing the viewing experience for fans in large sports venues.
Transportation Signage
Deployed in bus stations, train stations, and along roadways to provide scheduling information, alerts, and navigational data.
Architectural and Facade Lighting
Use in lobbies to display guest information, events, and amenities, or as part of the decor in bars and lounges to create a vibrant atmosphere.
Emergency Messaging
Used by government and public service entities to broadcast emergency alerts and critical information during events like weather emergencies or public health crises.

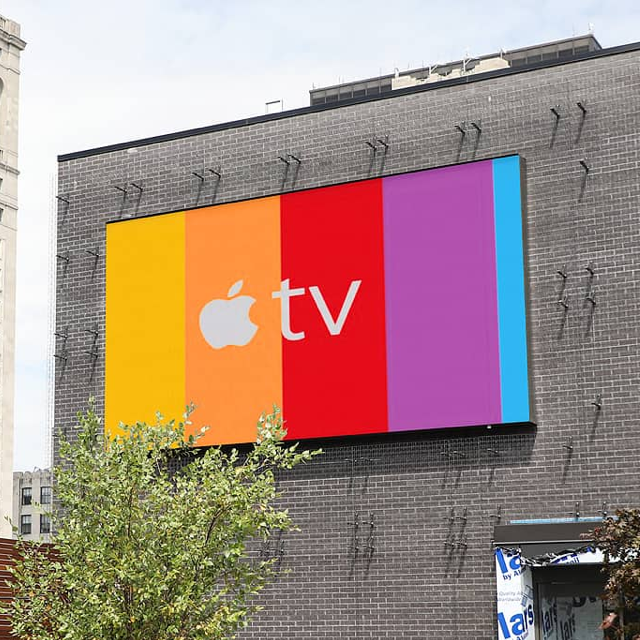

Corporate Branding
Corporations use outdoor LED screens at their headquarters or in public spaces to showcase brand content, corporate news, and CSR activities.
Parameter
Outdoor Small Pixel Pitch LED Display | ||||
Item | P2 | P2.5 | P3 | P4 |
Pixel Pitch | 2mm | 2.5mm | 3mm | 4mm |
LED Encapsulation | SMD1211 | SMD1921 | SMD1921 | SMD2727 |
Density(pixes/m²) | 250000 | 160000 | 111111 | 62500 |
Brightness (cd/m²) | 2000-4500 | 2000-4500 | 2000-5000 | 3000-5000 |
Scan Mode | 1/20 | 1/16 | 1/16 | 1/10 |
Module Size(L×W) | 160mm×160mm | 160mm×160mm | 192mm×192mm | 320mm×160mm |
Module Resolution (L×W) | 80×80 | 64×64 | 64×64 | 80×40 |
Outdoor Normal Pitch LED Display | ||||
Item | P5 | P6 | P8 | P10 |
Pixel Pitch | 5mm | 6mm | 8mm | 10mm |
LED Encapsulation | SMD2727 | SMD2727 | SMD2727 | SMD2727 |
Density(pixels/m²) | 40000 | 27777 | 15625 | 10000 |
Brightness (cd/m²) | 5000 | 5000 | 5000 | 6000 |
Color Temperature | 6500-9500k | |||
Scan Mode | 1/8 | 1/8 | 1/5 | 1/2 |
Module Size (L×W) | 320mm×160mm | 192mm×192mm | 320mm×160mm | 320mm×160mm |
Module Resolution (L×W) | 64×32 | 32×32 | 40×20 | 32×16 |
Cabinet size (L×W×D) | 960mm×960mm | |||
Cabinet Resolution (L×W) | 192×192 | 160×160 | 120×120 | 96×96 |
Cabinet Material | Iron made standrad cabinet | |||
Screen Weight | 42 kg/sqm | |||
Working Voltage | AC:110V~240V,50~60Hz | |||
MAX Power Consumption | ≤700W/m² | |||
AVG Power Consumption | 200W/m²~300W/m² | |||
Viewing Angle | H:140°V:120° | |||
Refresh Rate | 1920Hz/3840Hz | |||
Gray Scale | 14-16bit | |||
highest Contrast Ratio | 6000:01:00 | |||
Control Method | Synchronous Control System | |||
IP Grade | IP67 | |||
Working Temperature | -10℃~+60℃ | |||
Working Humidity(RH) | 10%～90%RH | |||
Installation Method | Fixed Installation,Hanging Installation,Curved Installation | |||
Signal Input | AV,DV,HDMI,SDI,S-videom,DP etc., | |||
LED Life Span | 100000H | |||
Certificate | FCC,CE,RoHs,CCC | |||
