Indoor modules are LED panels designed specifically for interior environments where direct sunlight is not an issue. They often feature higher pixel densities for close viewing distances and are commonly used in retail, airports, and event halls.

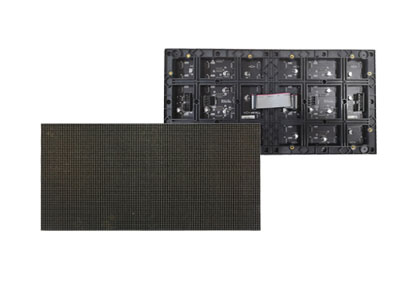

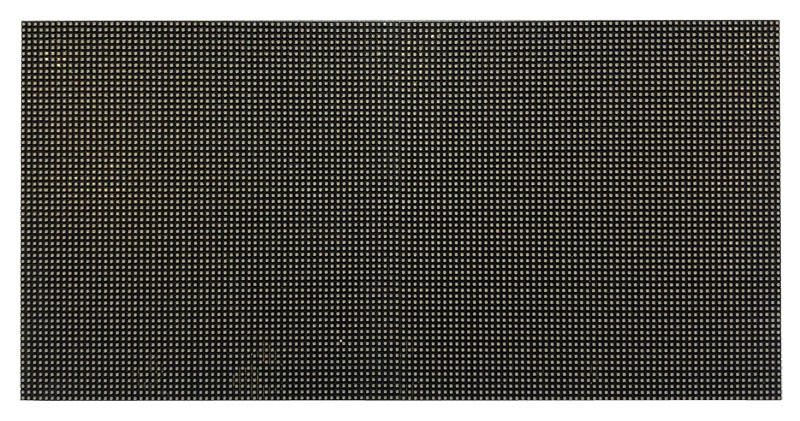

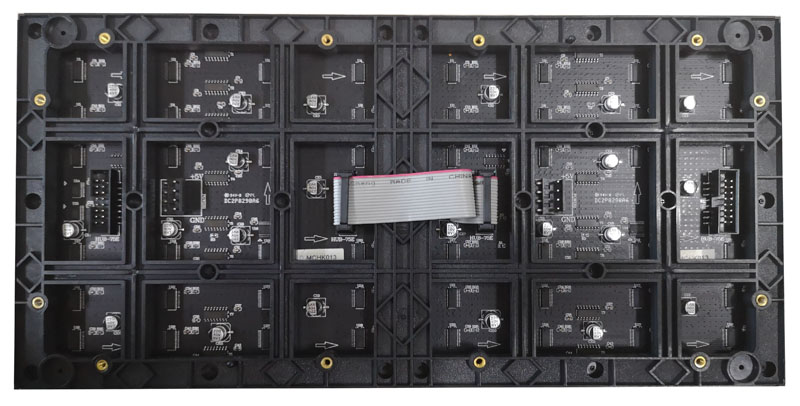

P2.5 LED module 320*160 mm or 160*160 mm
| Technical parameters | UNIT | Parameters values |
| Pixel pitch | MM | 2.5 |
| Panel size | MM | L320*H160*T13 or L160*H160*T13 |
| Pixel configuration | R/G/B | 1,1,1 |
| Driving method | 1/32 | |
| LED Encapsulation | SMD | 2121 |
| Display resolution | DOTS | 128*64=8192 or 64*64=4096 |
| Module weight | KG | 0.38 or 0.19 |
| Module port | HUB-HD75E | |
| Module working voltage | VDC | 5 |
| Module consumption | W | ≤16 |
| Every square metre module | PCS | 18 or 36 |
| Equilibrium brightness | CD/ M2 | ≥ 800 |

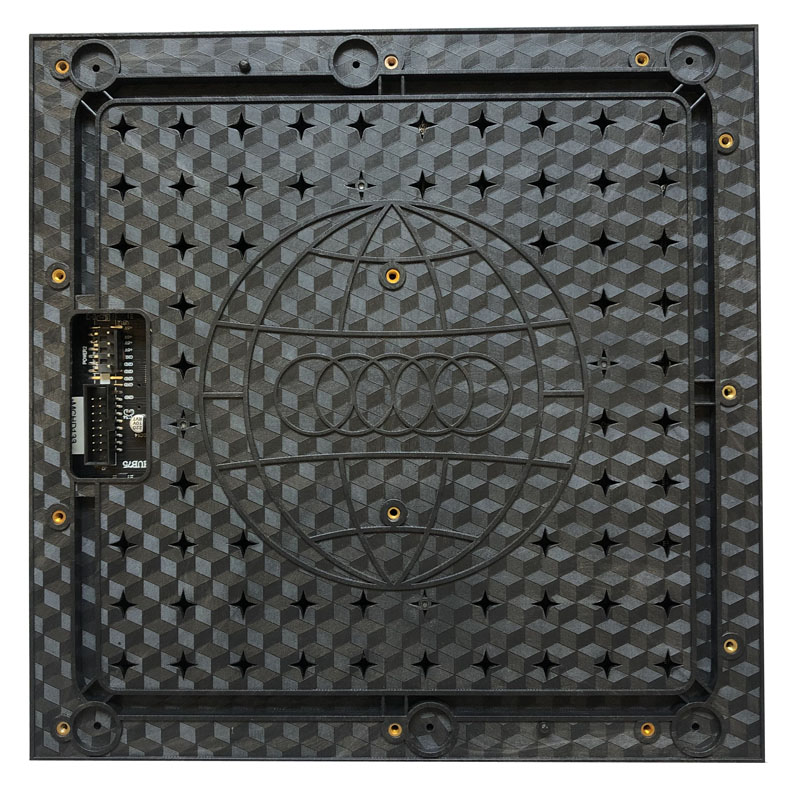

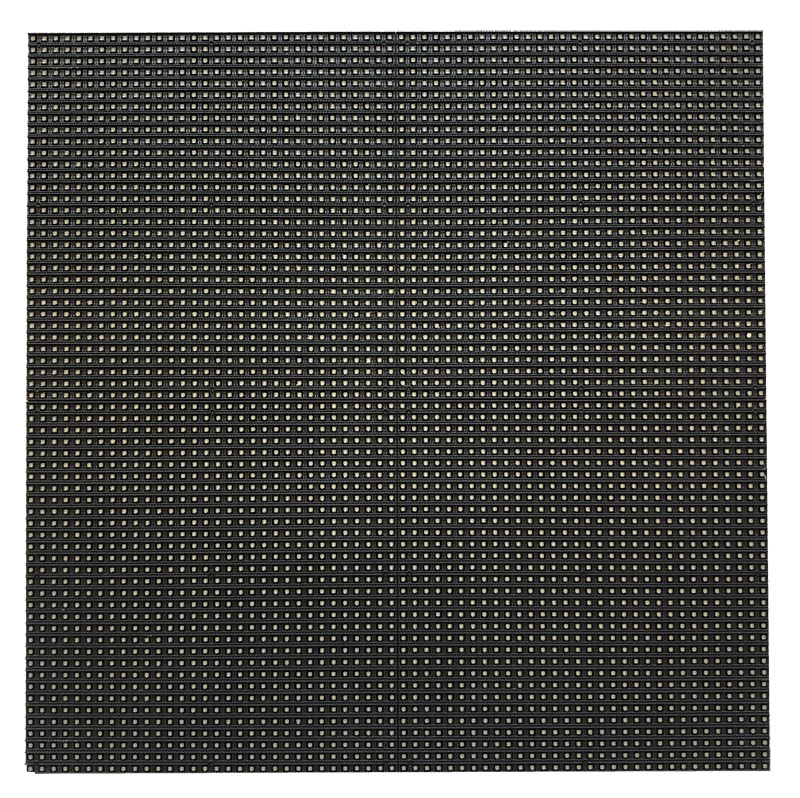

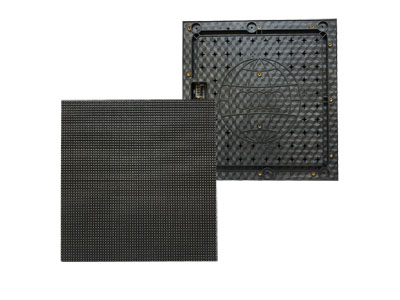

P3.91 LED module 250*250 mm
| Technical parameters | UNIT | Parameters values |
| Pixel pitch | MM | 3.91 |
| Panel size | MM | L250*H250*T12 |
| Pixel configuration | R/G/B | 1,1,1 |
| Driving method | 1/16 | |
| LED Encapsulation | SMD | 2121 |
| Display resolution | DOTS | 128*64=8192 |
| Module weight | KG | 0.558 |
| Module port | HUB-HD75E | |
| Module working voltage | VDC | 5 |
| Module consumption | W | ≤16 |
| Every square metre module | PCS | 16 |
| Equilibrium brightness | CD/ M2 | ≥ 700 |
