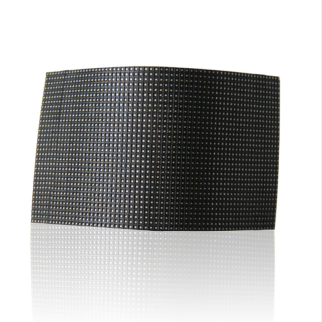

Flexible modules are innovative LED panels that can bend and wrap around surfaces, allowing for creative installations that traditional flat screens cannot achieve. They are suitable for creating unique shapes and designs in bespoke advertising or art installations.
P4 LED module 256*128 mm
| Technical parameters | UNIT | Parameters values |
| Pixel pitch | MM | 4 |
| Panel size | MM | L256*H128*T12 |
| Pixel configuration | R/G/B | 1,1,1 |
| Driving method | 1/16 | |
| LED Encapsulation | SMD | 2121 |
| Display resolution | DOTS | 64*32=2048 |
| Module weight | KG | 0.218 |
| Module port | HUB75 | |
| Module working voltage | VDC | 5 |
| Module consumption | W | ≤18 |
| Every square metre module | PCS | 28 |
| Equilibrium brightness | CD/ M2 | ≥ 600 |
Type:
